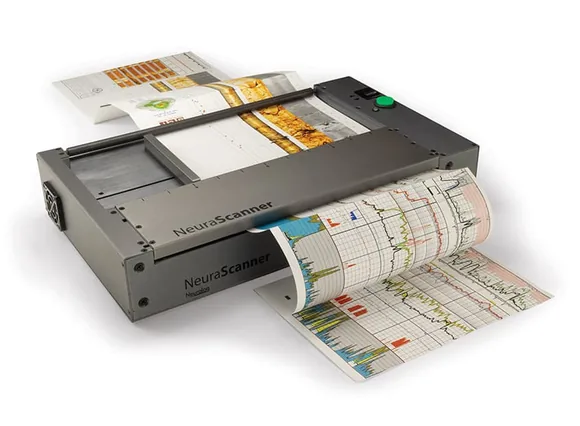

NeuraScanner

High Speed Quality Well Log Scanner

NeuraScanner is a high speed, color continuous well log scanner. Built specifically for well logs, the NeuraScanner can scan logs up to 10 inches per second. With three color settings, color, black & whie, and grayscale, capturing and preserving your logs has never been so efficient.

Digitizing your paper well logs is an essential business function in the E&P industry. With NeuraScanner you can safeguard your archive of paper-based logs. It can also be used to scan maps, core photos, outcrop descriptions, reports, and other data commonly found in the E&P environment.

The included NeuraView software allows on-the-fly control of image settings, including brightness and detail, for grayscale or color logs. The NeuraScanner easily works with originals printed on paper, mylar, or even photographic film up to 12″ wide and any length.

For more delicate or poor original logs, a slower speed and smooth paper handling are built-in, ensuring even the oldest and longest documents flow through the NeuraScanner to produce crisp raster images.


“The new NeuraScanner makes paper fly! I was able to scan my logs at over 10 inches/sec.
Finally a truly practical way to capture my logs.”
Houston, Texas

The world’s only scanner designed specifically to accomodate well logs just got faster, clearer and lighter weight.

Neuralog introduces its next generation continuous well log scanner. With the same compactness that fits in a standard computer case, and weighing under 10 pounds, the NeuraScanner can be carried anywhere – office, customer site, rig, home. Designed with a its own custom programmable microchip and a unique new optical sensor created for Neuralog, specifically for capturing well logs, NeuraScanner truly represents state of the art in continuous scanning technology.

If your business includes scanning well logs, the NeuraScanner is a must. This scanner is unique in its ability to quickly capture and preserve your valuable well log images.

Neuralog’s Next Generation NeuraScanner works with USB2.0 to make data transfer to your PC robust and fast. This combined with our updated image processing technologies, allows for speeds up to 10 times faster than our previous scanner. B&W or Greyscale scanning for a typical log is achieved at speeds up to 10″/sec and the image quality is outstanding. For hard-to-read logs needing a high resolution or color scan, the maximum resolution is now 600dpi, and a custom-built LED image sensor produces the highest quality color scans. In addition, NeuraScanner now offers an Instant Rescan option. Instant Rescan sends your log image to NeuraView where brightness and detail can be modified after the scan. With Instant Rescan the need to rescan your paper log has been eliminated.

NeuraScanner is a small, fast, light, worry free log scanner. Equipped with a powerful high-speed programmable processor which will allow for cpu updates, and a custom-built image sensor that was designed for scanning well logs, it can perform advanced image processing and compression to ensure great scans every time.

NeuraScanner works with your USB port. USB 2.0 is highly recommended because of its speed, however USB1.0 is supported. And with your NeuraLaserColor or NeuraJet17 well log printers, it can be used as your log copying solution.

The NeuraScanner box itself, built from light-weight 7075 aluminum, is robust enough to be carried even into the most rugged environments. At the same time, the paper handling has been fine tuned to allow for scanning even the most delicate logs. Whether your logs are thick, fanfold style or slick paper used by older printers, NeuraScanner has been designed to handle them all.

NeuraScanner ships with NeuraView Scanner Edition (NeuraViewSE). NeuraViewSE is software to view, modify and print your scanned images, as well as digital LAS files.

NEURASCANNER UPDATED SPECIFICATIONS OVERVIEW*

Size15″ W x 9″ D x 2.5″ H (fits in a standard briefcase)
Size15″ W x 9″ D x 2.5″ H (fits in a standard briefcase)
Weight~9lbs. (primarily aluminum)
Scan Width1″ – 12″ W x unlimited length
MediaPaper or Film
DPI600 DPI max
ColorsB&W, Gray, Color
PowerUniversal, Self-sensing for use worldwide
Speed1″- 10″ per second (turbo option)
InterfacesUSB 2.0, USB 1.0
HostsPC

*Specifications subject to change.

Looking for Support?

Featured Products

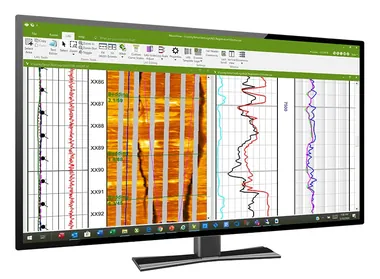

NeuraView

Quickly view, process, and print well logs and maps from multiple file types.

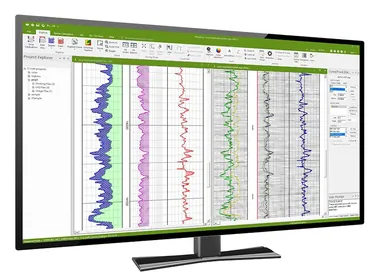

NeuraLog

Accurately convert scanned logs into workstation-ready digital data.
NeuraSection software

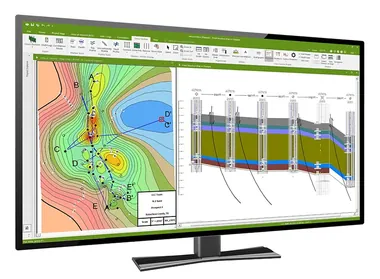

NeuraSection
