Neuralog Z3

High Speed LED Color Well Log Printer/Plotter

logo-z3-808x160

Neuralog Z3 is a fast reliable color log printer/plotter small enough for your desktop, but tough enough for the Oil & Gas industry. Specifically designed for printing well logs, the Neuralog Z3 uses HD Color Printing technology to print rich, dramatic colors at speeds of 7 inches per second.

NeuraView software completes this solution to give you everything you need to print well logs in industry standard formats. This versatile printer/plotter has native Adobe PDF support, as well as standard cut sheet printing support for well reports and other office documents.

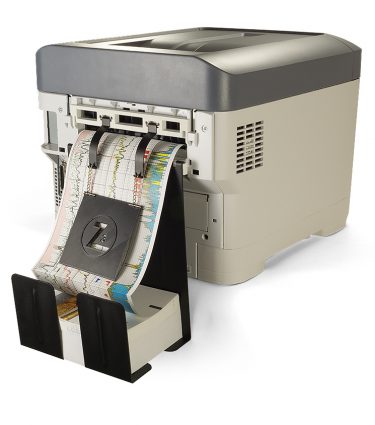

printer-neuralog-z3_745x845

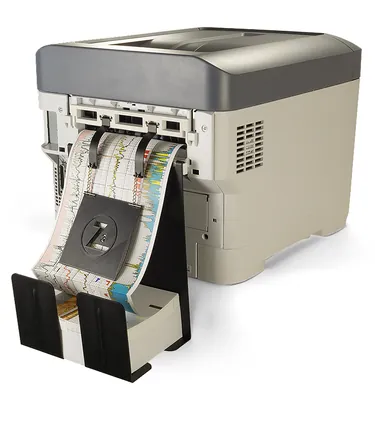

The Neuralog Z3 well log printer is a proven solution to produce incredibly detailed well log documents. The Z3 uses Single Pass Color technology to print at speeds of 30 feet per minute with rich, dramatic colors and the highest quality for immediate presentation or preservation.

An enterprise-class commercial printer, the Z3 supports a wide variety of industry-standard well log formats and works with numerous software titles to double as a standard office printer.

Looking for Support?

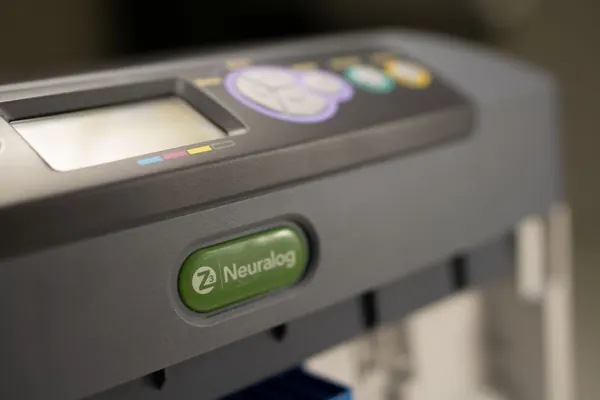

Neuralog Z3 well log printer/plotter makes printing well logs quick and easy. Its ergonomic design includes a user-friendly operator panel and easy to access consumables. Automated paper handling streamlines the well log printing process, requiring minimal user assistance.

Highlights of the Neuralog Z3 printer/plotter include:

  • Fast crisp color log prints at 7 inches per second
  • High quality brilliant permanent colors
  • Automatic media handling including cutting, loading and folding of well logs
  • Accurate well log length calibration
  • Integration with industry well log applications



Well log paper is inserted into the printer’s Continuous Form Attachment and is gently pulled into the printer and straightened as it is loaded. Neuralog Z3 automatically handles all paper loading for subsequent prints with no user assistance needed, even when the paper is cut between the logs. Neuralog Z3 uses continuous-length bright white 24# paper and high yield print cartridges available from Neuralog. This custom paper has a durability, smoothness and preciseness that are ideal for high speed continuous printing. Printing supplies are very affordable, lowering the overall Total Cost of Ownership (TCO) for this printer.

The high-speed print engine, engineered especially for handling long continuous documents, allows Neuralog Z3 plotter to print logs quickly and reliably. Logs can be sent directly from your PC over a standard network or USB interface. The custom print driver allows you to print any length log in color, grey or black and white, and multiple log copies can be printed in a single batch from your PC.  LAS, TIFF or your custom format logs can be printed from the included NeuraView software or any capable Windows application. Contact Neuralog for a list of recommended well log applications.

NEURALOG Z3 SPECIFICATIONS*
 Well LogsCut Sheet
Color and B&W SpeedUp to 30 feet per minute (7 ips)Up To 34 ppm
Media Size8.5″ width x UnlimitedLetter, Legal, A4
Media CapacityContinuous Form Attachment – Unlimited530 Sheet Tray
PaperNeuralog High Quality Log Paper**Any standard document paper
Max Print ResolutionUp to 1200×600 dpiUp to 1200×600 dpi
InterfacesNetwork Ethernet, USBNetwork Ethernet, USB
Print TechnologySingle Pass, 4-Color LED
Toner and Consumables
  • 11,500-page (CMY) 11,000-page (K) Print Cartridges
  • 20,000-page (CMYK) Drum
  • 60,000-page Fuser (specify 110V/220V)
  • 60,000-page Belt
CutterRotary cutter solid tungsten carbide blade rated to 10,000 cuts
 Print EngineContinuous Form Attachment
Size (inches)17.1” x 21.5” x 15.3” (W x D x H)13.0” x 5.5” x 2.5” (W x D x H)
Size (mm)435mm x 547mm x 389mm (W x D x H)330mm x 140mm x 64mm (W x D x H)
Weight (lbs)61 lbs.4.3 lbs.
Weight (Kg)27.6 Kg.1.9 Kg.
  Stacker: 6.5W x 13H x 10D, 1 lb.
ElectricalSpecify 110V or 220V

*Specifications subject to change.
**Neuralog’s paper has undergone rigorous testing in our engineering facility. We recommend its use for all well log printing.

More Information:

Featured Products

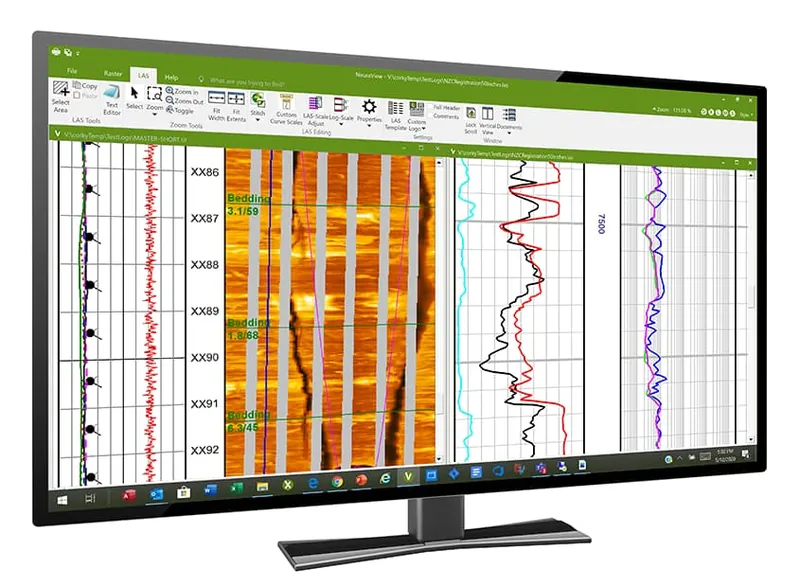

NeuraView

Quickly view, process, and print well logs and maps from multiple file types.

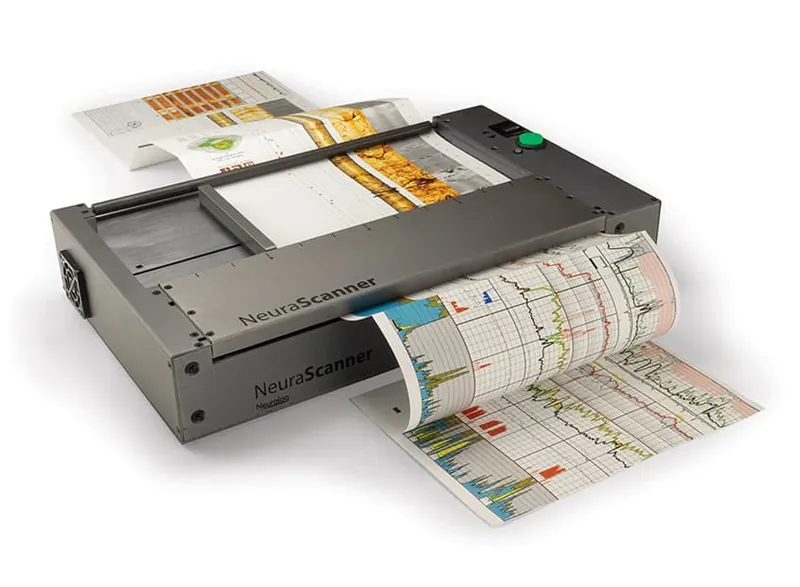

NeuraMap

Purpose-built for scanning well logs and continuous documents from anywhere.

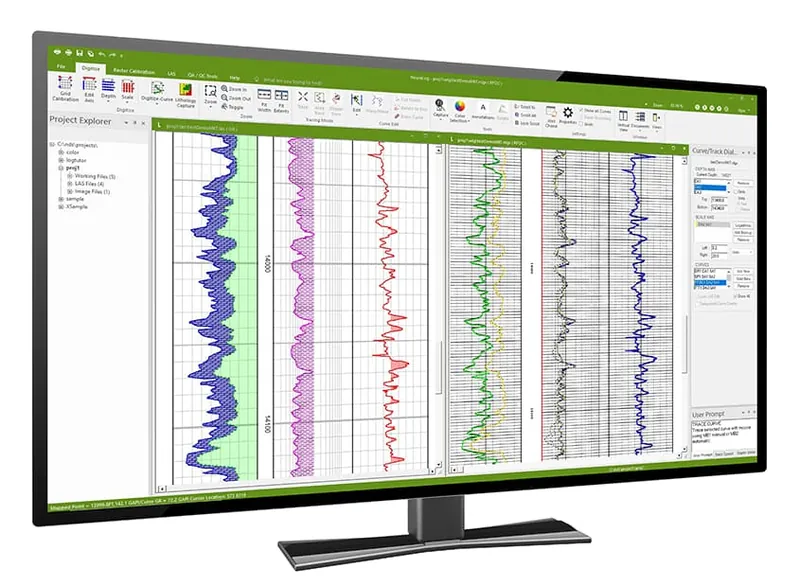

NeuraLog

Accurately convert scanned logs into workstation-ready digital data.

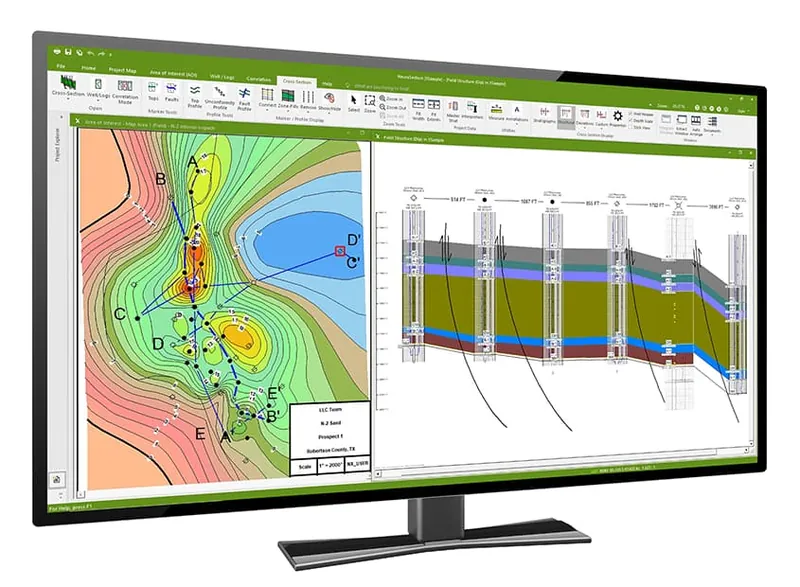

NeuraSection software
