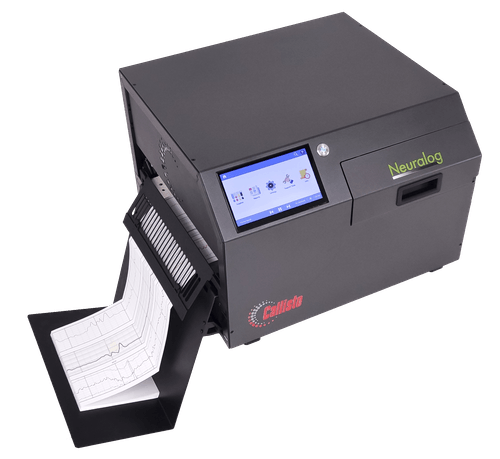

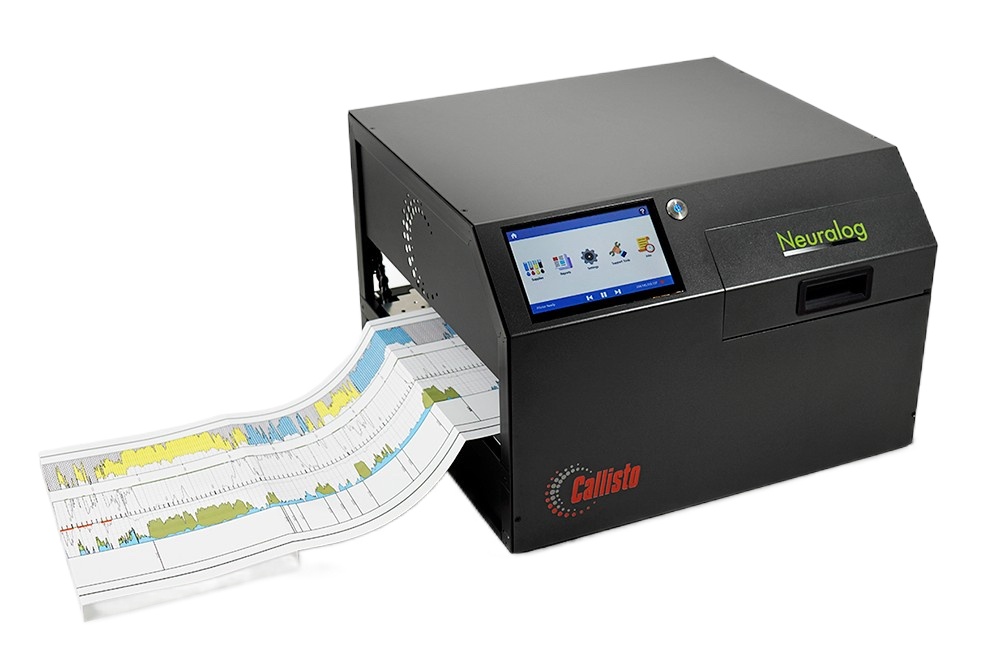

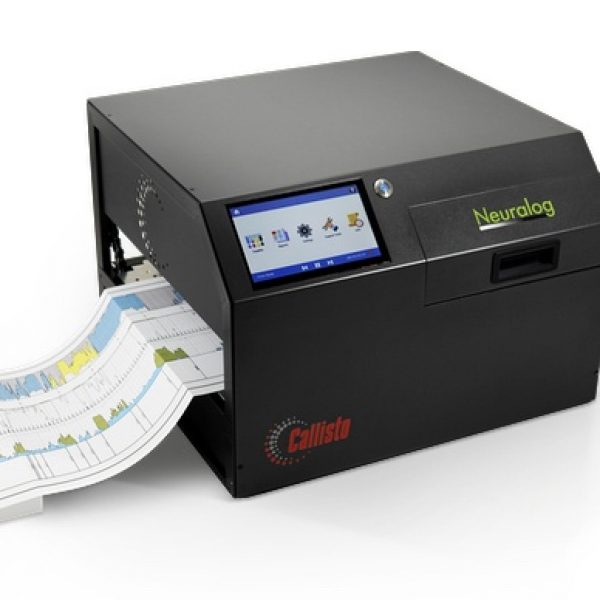

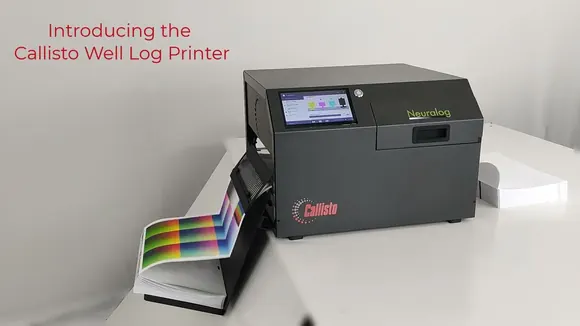

Neuralog Callisto – Color Inkjet Well Log Printer

The Neuralog Callisto is the latest inkjet well log printer from Neuralog. Engineered from the ground up, the Callisto is designed to deliver high-quality color well log prints up to 12 inches wide faster than ever at speeds up to 90 feet per minute. Durable aqueous pigment inks produce high-quality colorfast well logs. The large user-friendly 7″ (17.8 cm) color LCD touch screen and built-in options make the Callisto simple to operate and maintain.

NeuraView software completes this all-in-one solution to provide everything you need to print well logs from standard industry formats as well as other standard-sized office documents.

Download the Callisto Product Sheet (opens in a new tab)

The Neuralog Callisto well log printer is fast. Printing at speeds of up to 18 inches per second, the Callisto inkjet printer produces well logs with brilliant color and fine detail.

With an aluminum frame and lightweight construction, the Callisto is easily portable from the field to the office for maximum flexibility. Designed with a user-friendly LCD touchscreen and high-capacity ink cartridges the Callisto improves printer uptime and office productivity.

Customers are saying...

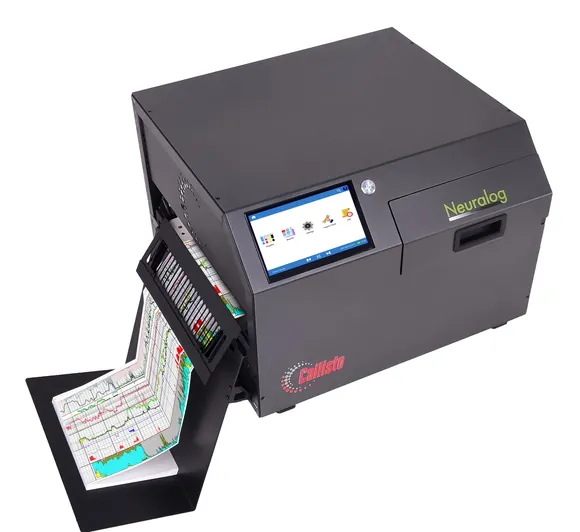

"We have switched from the 300x printer to the Callisto printer for our well log printing, and we consider it to be quite an upgrade. The Callisto is reliable and easy to use. Also the larger ink cartridges and new stacker mean more time printing and less time loading ink and monitoring the print stack." - Houston, TX

More from our Customers...

"The Callisto printers are so much better than the well log printers we’ve been using. The Callisto can print 5 logs in the time it took our previous printer to print one, and the log stacking is amazing. Reprinting logs from the printer panel is easy and saves time. We really like the Callisto printer. It’s quite an upgrade." - Houston, TX

Looking for Support?

Go to Support

The Neuralog Callisto well log printer prints full-color well logs and reports at 18 inches per second. Built on HP PageWide™ advanced printhead technology and designed and engineered by Neuralog, the Callisto is the next generation in well log printers. Highlights include:

– Fastest well log printer available at 90 feet per minute (18 ips)
– High resolution up to 2400 x 1200 dpi for sharp colors and fine detail
– Durable aqueous pigment inks produce high-quality colorfast well logs
– Prints area width up to 12″ (30.4 cm)
– High capacity cartridges ensure productivity
– Automatic media handling including cutting, loading, and folding of well log

NEURALOG CALLISTO SPECIFICATIONS*
Color and B&W Speed	Up to 90 feet per minute (18 ips) \| 27.4 meters per minute (457mm/s)
Print Resolution	Up to 2400 x 1200 dpi
Print Technology	Thermal Inkjet
Consumables	CMY – 16,000 standard pages K – 17,000 standard pages
Media	8.5″ standard and 12″ well log paper
Print Length	Unlimited
Dimensions	19.50 inches W x 13.25 inches H x 18.25 inches D 49.53 cm W x 33.66 cm H x 46.36 cm D
Weight	55 lbs. / 24.95 kg
Operating Environment	Recommended: 60° F – 85° F / 15.6° C – 29.4° C \| Humidity: 20-80% RH
Power	110V to 240V, 50/60Hz
Connectivity	Gigabit Ethernet, Optional WiFi Card
Warranty	1 Year Premium Warranty Included \| Extended Warranty Available

*Specifications subject to change.
**Neuralog’s paper has undergone rigorous testing in our engineering facility. We recommend its use for all well log printing.

Frequently asked questions

What is the Callisto?

A color thermal inkjet well log printer that prints logs up to 12 inches wide.

How fast does the Callisto print?

Up to 90 feet per minute, or 18 inches per second. The recommended print speed for most black-and-white or LAS well logs is about 14 inches per second. Full-color logs that need high-resolution detail print at slower speeds.

What paper does the Callisto use?

8.5-inch standard and 12-inch well log paper, available from Neuralog. Callisto prints any width from 2 to 12 inches. As an inkjet printer, the Callisto requires inkjet-coated paper from Neuralog.

How long does an ink cartridge last?

Cyan, magenta and yellow cartridges are rated for 16,000 standard pages, and black cartridges for 17,000 standard pages.

What resolution does Callisto support?

Up to 2400 × 1200 dpi. The recommended print resolution for most well logs is 300 dpi.

Can Callisto print logs of any length?

Yes. Callisto is designed to handle extremely long well logs and produces continuous output without splitting the data into smaller sections.

Can Callisto print both raster and digital logs?

Yes. Callisto supports both raster log images and digital log data, so you can print legacy scanned logs alongside modern LAS-based projects with a single printer.

Is Callisto's printed length accurate?

Callisto maintains both horizontal and vertical calibration to help ensure reliable printed output. Calibration is set at the factory but can be adjusted in the field if needed.

Can Callisto produce presentation-quality logs?

Yes. Callisto produces high-resolution, professional-quality output suitable for technical reports, regulatory submissions, client presentations and archive records.
