NeuraLaser Color II

High Speed Color Well Log Printer/Plotter

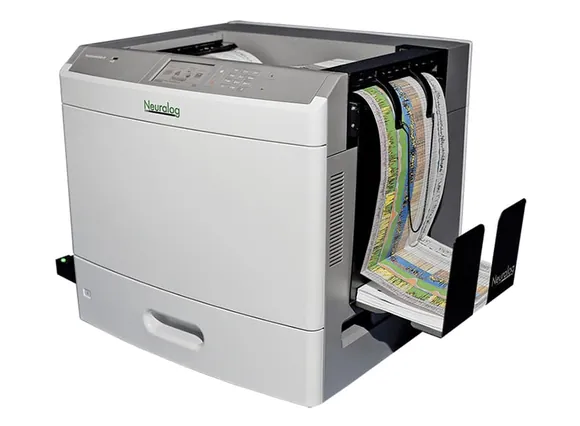

NeuraLaserColor II is the fastest color laser log printer/plotter in the industry. Specifically designed for printing well logs, the NeuraLaserColor II uses enhanced imaging technology to print accurately at speeds of 11 inches per second.

Color Laser Log Printer

NeuraLaserColor II is a cost-effective high-speed, high quality laser printing solution. Featuring fast color laser print speeds combined with the latest enhanced imaging technology, superior quality log prints are efficiently produced for immediate presentation and preservation.

The NeuraLaserColor II supports a variety of industry standard well log formats and prints well reports and other standard-sized documents, making it a complete and flexible printing solution for your E&P team.

Features of the NeuraLaserColor II printer/plotter include:

  • Fastest color laser log print speeds at 11 inches per second
  • Highest quality prints of any well log printer/plotter
  • Ease of use with automatic media handling
  • Exclusive on-the-fly length calibration
  • Integration with industry well log applications, including native Adobe PDF support
  • Energy Star rated printer/plotter
  • 40% less expensive to operate than NeuraLaserColor I

Looking for Support?

NeuraLaserColor II well log printer/plotter makes printing well logs quick and easy. Its ergonomic design includes a user-friendly touch-screen operator panel with audible feedback and easy to access consumables. Automated paper handling streamlines the well log printing process, requiring minimal user assistance. On-the-fly length calibration and pantone color calibration ensure that you get the highest quality prints every time.

Features of the NeuraLaserColor II printer/plotter include:

  • Fastest color laser log print speeds – 11 inches per second
  • Highest quality prints of any well log printer/plotter
  • Ease of use with automatic media handling
  • Exclusive on-the-fly length calibration
  • Integration with industry well log applications, including Native Adobe PDF support
  • Energy Star rated printer/plotter
  • 40% cheaper to operate than NeuraLaserColor I



Well log paper is inserted into the printer’s Continuous Form Attachment and is gently pulled into the printer and straightened as it is loaded. NeuraLaserColor II automatically handles all paper loading for subsequent prints with no user assistance needed, even when the paper is cut between the logs. NeuraLaserColor II uses continuous-length bright white 24# paper and extra high yield print cartridges available from Neuralog. This custom paper has a durability, smoothness and preciseness that are ideal for high speed continuous printing. Laser printing supplies are very affordable, lowering the overall Total Cost of Ownership (TCO) for this printer.

The high-speed print engine, engineered especially for handling long continuous documents, allows NeuraLaserColor II log plotter to print logs quickly and reliably. Logs can be sent directly from your PC over a standard network interface. The custom print driver allows you to print any length log in color, grey or black and white, and multiple log copies can be printed in a single batch from your PC.  LAS, TIFF or your custom format logs can be printed from the included NeuraView software or any capable Windows application. Contact Neuralog for a list of recommended well log applications.

NEURALASERCOLOR II SPECIFICATIONS*
 Well LogsCut Sheet
Color and B&W SpeedUp to 11 ipsUp To 50 ppm
Media Size8.5″ width x UnlimitedLetter, Legal, A4
Media CapacityContinuous Form Attachment – Unlimited550 Sheet Tray
PaperNeuralog High Quality Log Paper**Any standard document paper
Max Print ResolutionUp to 2400 dpiUp to 2400 dpi
InterfacesNetwork EthernetNetwork Ethernet, USB
Toner and Consumables
  • 20,000-page (CMYK) Extra High Yield All-in-one Print Cartridges
  • 150,000-page Fuser, 200,000-page Image Transfer Unit
  • Recycle Program for Print Cartridges
Toner ControlCustom settings available to control toner usage
Processor/Memory1.2GHz  1.5 GB on board RAM
Size (inches)
Weight (pounds)
Print Engine
20.3W x 22.3H x 20.2D
110 lbs
Continuous Form Attachment
12W x 2H x 5D, 4 lbs
Stacker
6.5W x 13H x 10D, 1 lb
ElectricalSpecify 110V or 220V

*Specifications subject to change.
**Neuralog’s paper has undergone rigorous testing in our engineering facility. We recommend its use for all well log printing.
