Neuralog Printers Industry Leading Color Well Log Printers

Neuralog well log printers are the industry standard. With years of proven experience, Neuralog printers produce incredibly detailed well log documents with exceptional speed and clarity. Innovations such as the patented Continuous Feeder Attachment and long-lasting printer components ensure a low cost of ownership.

Neuralog Callisto

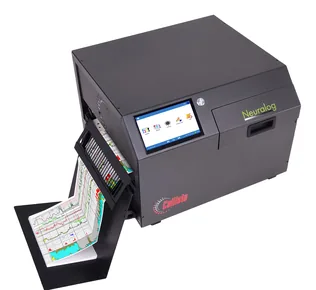

Callisto Well Log Printer with Log Stacker

Print area width up to 12 inches
90 feet per minute
High capacity cartridges

Neuralog NT1000

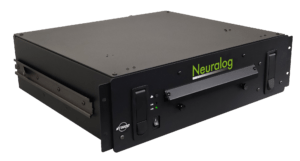

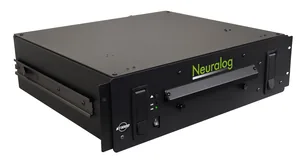

NT1000 truck printer, left side

Print anywhere
High-quality grayscale output
Industrial-built for rugged environments

Neuralog Z4

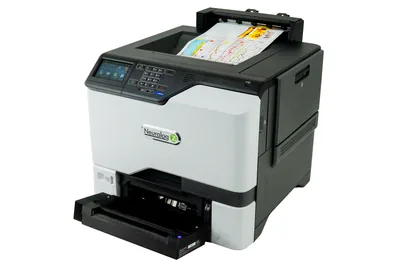

Neuralog Z4 well log printer

Automatic media handling
11 inches per second
Eco-friendly features

Compare current Neuralog well log printers

Neuralog CallistoNeuralog Z4Neuralog NT1000
Print technologyThermal inkjetSingle-pass 4-color laserDirect thermal
ColorColor and black & whiteColor and black & whiteGrayscale
SpeedUp to 90 ft/min (18 in/s)Up to 55 ft/min (11 in/s)4 in/s
ResolutionUp to 2400 × 1200 dpi1200 × 1200 dpi; 2400 × 600 dpi300 dpi
Paper8.5″ standard and 12″ well log paper8.5″ standard well log paper8.5″ thermal paper
Weight55 lb (24.9 kg)83 lb (37.6 kg)Less than 20 lb (9.1 kg)
Built forOffice Continuous PrintingOffice Continuous and Cut Sheet PrintingLogging trucks, offshore platforms and exploration facilities
Warranty1 year premium, extended available1 year premium, extended available1 year standard, extended available

Specifications from each printer’s product page. Looking for an older model? See Supported Printers below.

Supported Printers

The following printers continue to be supported through warranty, repair and consumables.

Please call for details on your particular model or see our Recommended Replacement

Neuralog Z3

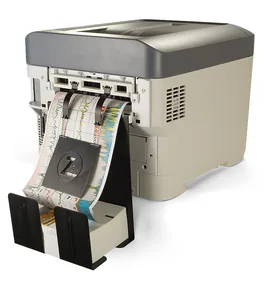

Neuralog Z3 well log printer

Desktop footprint
6 inches per second
Limited availability, Supplies readily available

Neuralog 300x

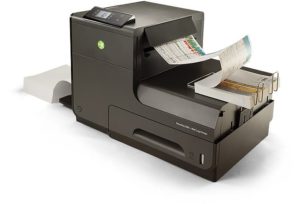

Neuralog 300x Well Log Printer

Variable width prints
Up to 14 inches per second
Discontinued Product

NeuraLaserColor II

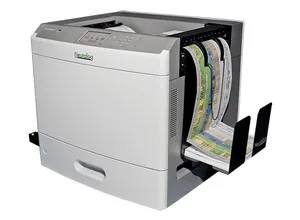

NeuraLaserColor II well log printer

Fastest color laser log printer
11 inches per second
Discontinued Product

NeuraJet17
NeuraJet17 Well Log Printer

Discontinued Product
Parts and supplies no longer available
